6 Shower Waterproofing Standards That Actually Prevent Failure

1. Start with the principle: tile is the finish, not the barrier

The TCNA Handbook for Ceramic, Glass, and Stone Tile Installation — the reference tile setters and inspectors actually use — treats tile and grout as porous finish materials, not a water barrier. Both let some water through by design. The layer that is actually engineered to stop water from reaching your framing is a membrane installed behind and beneath the tile, sealed at every seam, corner, and pipe penetration, before a single tile goes up.

That's the frame for everything below. None of these six standards are about how the finished shower looks — they're about the hidden assembly a homeowner never sees again once the grout goes in. For a full breakdown of the three membrane systems pros actually use, see our companion shower waterproofing guide.

2. Standard 1 — a membrane actually rated to ANSI A118.10

Not every product marketed as "waterproofing" has been tested the same way. ANSI A118.10 — American National Standard Specifications for Load Bearing, Bonded, Waterproof Membranes for Thin-Set Ceramic Tile and Dimension Stone Installation — is the specific standard that defines what a membrane has to survive to be called load-bearing, bonded, and waterproof, not merely water-resistant. It applies to trowel-applied liquid membranes and sheet membranes alike, and it's maintained and referenced by TCNA's ANSI standards program.

In practice, this is the single fastest thing to ask a contractor or check a product data sheet for: does the membrane meet ANSI A118.10? If the answer is a generic "yes it's waterproof" without the standard number, that's worth pressing on before tile goes up over it.

3. Standard 2 — slope built before the membrane, not corrected after

Washington has adopted the 2021 Uniform Plumbing Code, per the WA State Building Code Council, which sets a minimum slope for shower floors toward the drain. TCNA installation methods put standard field practice at 1/4 inch of pitch per foot — enough to clear standing water without creating an unsafe walking surface.

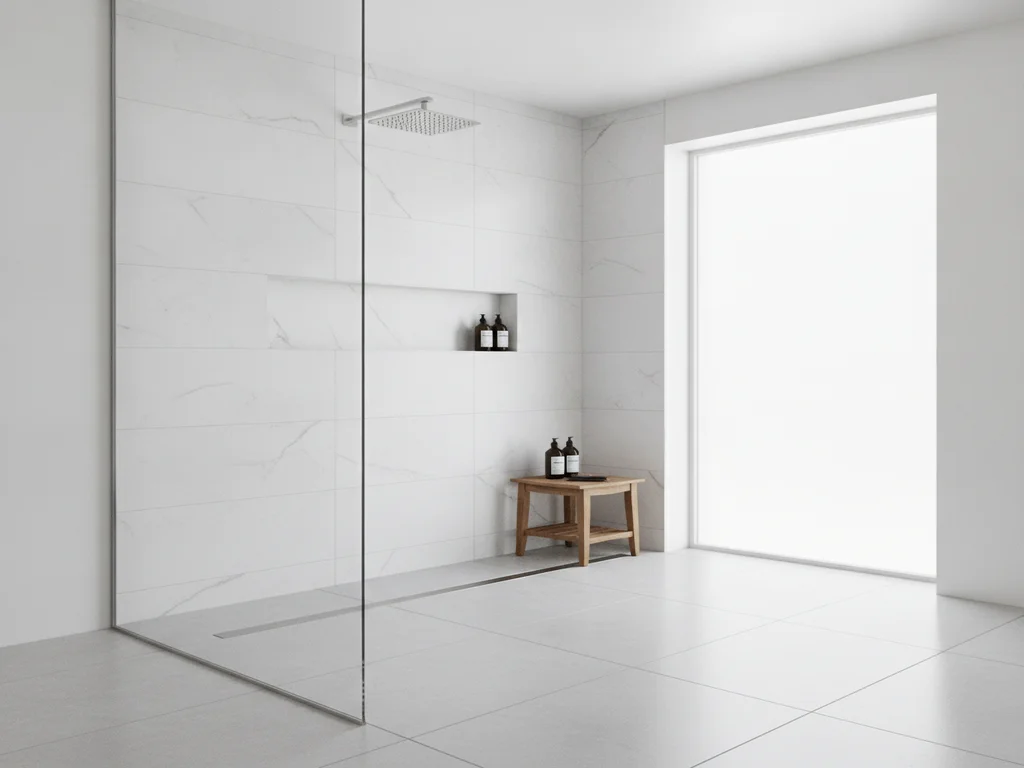

The critical detail is sequencing: on a bonded system, that slope is built into a pre-sloped substrate (foam shower base or mortar pre-slope) before the waterproof membrane goes on top of it. Grout lines and tile thickness cannot fix a flat or reverse-pitched substrate underneath — they just hide it until water starts pooling against a threshold or curb. This is especially true on curbless and low-threshold layouts, where a linear drain has to pull the entire pan to a single, precise plane; see our walk-in showers page for how that's planned locally.

4. Standard 3 — a recognized ANSI A108 method, bonded or traditional

Both approaches can meet code and last decades. What separates them isn't the category — it's whether the specific method was followed to spec. A bonded system fails when the membrane is under-applied or a seam isn't sealed; a traditional system fails when the pre-slope is flat, the liner is punctured, or weep holes clog. Correct membrane installation also sets up everything that comes after it, from grout selection to how well custom tile and stonework bonds and stays crack-free. See our best shower wall materials guide for how the wall assembly above the pan factors into the same decision.

• ANSI A108 is a family of American National Standard specifications — maintained by TCNA — that define how ceramic and stone tile assemblies actually get installed, method by method, over different substrates and membrane types.
• Bonded (sheet or liquid) membrane systems: a sheet or liquid membrane certified to ANSI A118.10 is applied directly over backer board or a pre-sloped foam base, installed to its corresponding ANSI A108 method, then tiled directly over it in thin-set.
• Traditional mortar-bed systems: a pre-slope mortar bed, then a PVC or CPE liner — CPE liner material is specified under ASTM D4068 for tensile strength, puncture resistance, and hydrostatic pressure resistance — then a second mortar bed on top, draining through a clamping drain with weep holes.

5. Standard 4 — backer board is a substrate, not a waterproofing layer

This is the standard most often skipped by assumption. Building Science Corporation's Info-407: Air Barriers — Tub, Shower and Fireplace Enclosures is explicit: cement board is not waterproof on its own — it has to be coated with a fluid-applied waterproofing or backed by its own water-resistive barrier that drains. The DOE-backed Building America Solution Center reaches the same conclusion and adds that moisture-resistant gypsum board ("green board") is not recommended behind a shower at all.

In other words: cement board, fiber-cement board, or a bonded foam substrate are the right starting materials, but none of them are a finished waterproofing system by themselves. The membrane standard from item 2 above still has to go over them.

6. Standard 5 — vapor-conscious detailing, especially here

A detail installers sometimes get backward: once a continuous waterproof membrane is in place, the assembly behind it can no longer dry by evaporation in either direction. Building Science Corporation's BSI-113: Stoned explains why this matters for the mortar itself — polymer-modified thin-set needs evaporation to fully cure and cross-link. Trapped behind a vapor-blocking membrane with no path to dry, a modified thin-set can fail to bond correctly, and sustained alkalinity can break down the polymer over time. The standard response is straightforward: use unmodified thin-set directly against a bonded waterproof membrane, per the membrane manufacturer's installation instructions.

It's a small material choice with an outsized consequence, and it's exactly the kind of detail that's invisible once the tile is up.

7. Standard 6 — verify with a flood test before tile goes up

Every standard above is a design requirement. The flood test is the verification step: after the membrane is installed and before any tile is set, the drain is dammed, the pan is filled with water, and it's left to sit — confirming the assembly holds water and then drains completely once the dam is released. It's the one point in the process where a hidden failure can still be caught and fixed cheaply, instead of discovered years later as a soft subfloor or a moldy ceiling below.

If a contractor skips this step or can't describe how they verify a pan before tiling, that's worth asking about directly.

Why the stakes are higher in a marine climate

None of these standards change because of geography — but the cost of skipping one does. Clark County sits in a marine west coast climate with elevated indoor humidity for a large share of the year, which gives hidden leaks less of a dry stretch to arrest themselves than they'd get somewhere with a real dry season. A membrane that's slightly under-applied, a pre-slope that's slightly flat, or a seam that's slightly unsealed tends to turn into rot and mold on a shorter timeline here than in a drier climate. Our guide to bathroom materials for the PNW climate covers the broader material picture beyond the shower itself.

Washington also requires anyone performing construction work for pay — including tile and waterproofing subcontractors — to hold active contractor registration with the Department of Labor & Industries (L&I), which includes bonding and insurance minimums. Ask for the L&I registration number on any shower project and verify it before signing a contract. If you're planning ahead, check permit requirements for a Camas bathroom remodel as well, since most full shower rebuilds require one.
